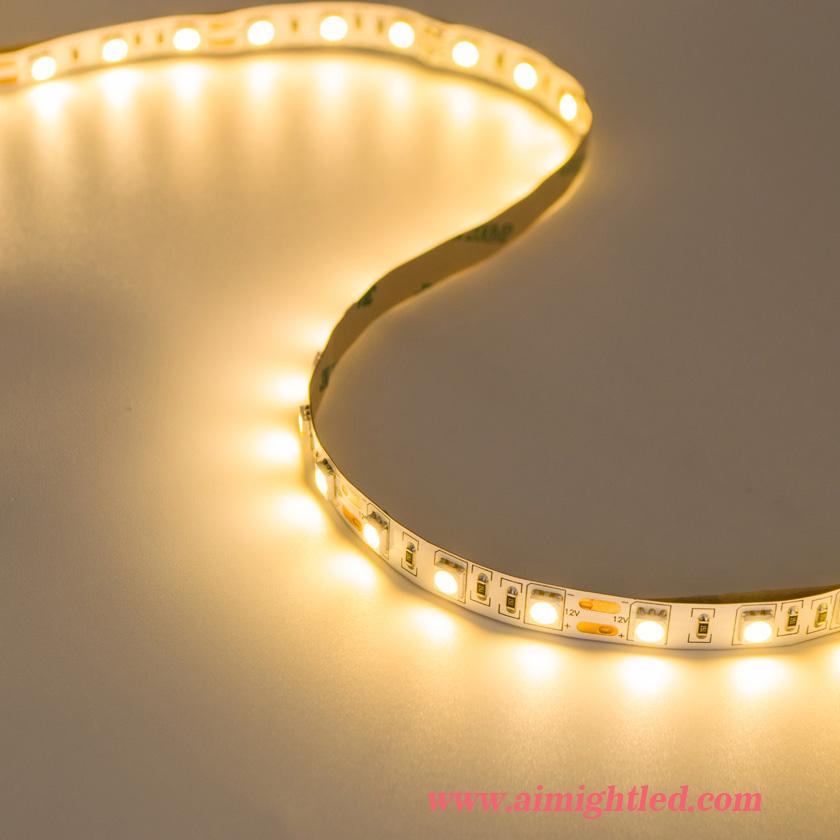

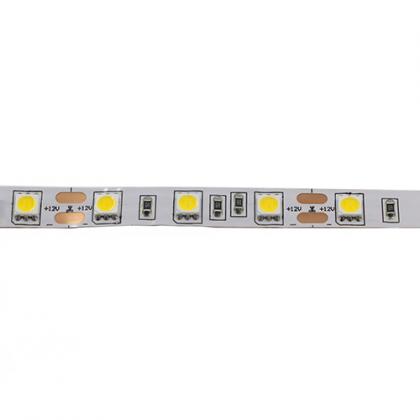

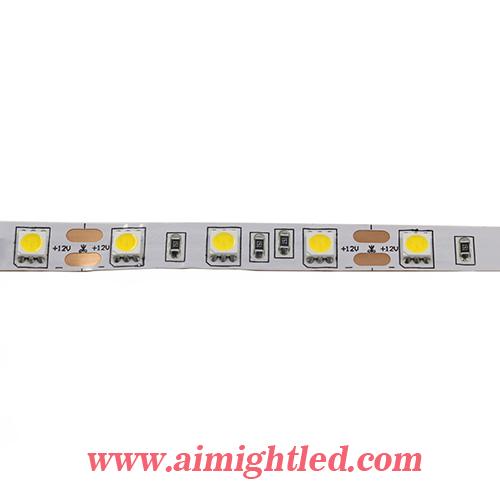

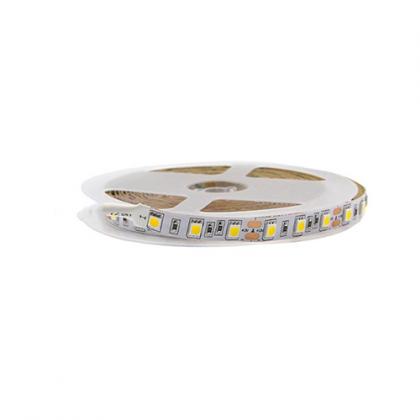

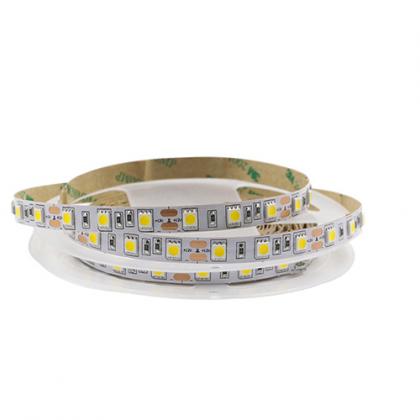

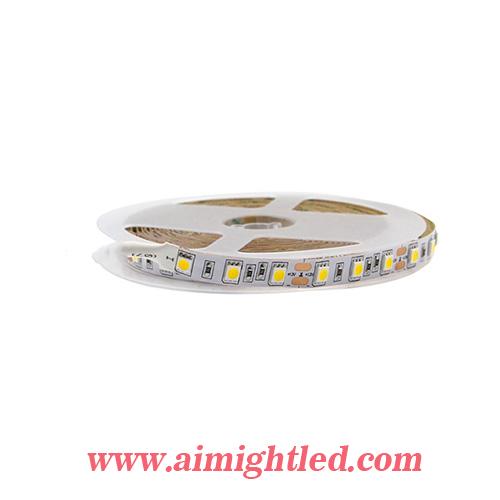

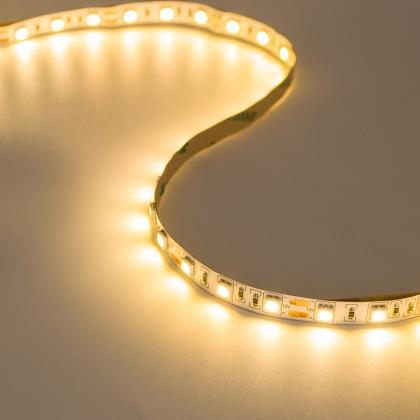

5050 60leds/m Warm white IP20 14.4w/m led strip


Name:5050 60leds/m Warm white IP20 14.4w/m led strip

Product Description

Product parameters:

 Item No  AB5050CW60-12V
 Led type  Smd5050
 Led source  Sanan/ epistar
 Material  Aluminum
 Input voltage  12v/24v
 Power  14.4w/m
 Led Qty/ (M):  60
 Lumen  10-12lm/led
 Dimension  10*5000mm
 Emitting Color:  Cool white
 Viewing Angle  120
 PCB  white double pcb
 Back tape  3M adhesive
 IP degree  IP20 IP65
 Life time(hour)  50000 hours
 Certificates  CE & Rohs
 Warranty  2 years warranty
 Working temp  -20 - 60
 Packing  100 rolls/carton

Color temperature

Warm white: 2800-3200K;

Nature White:4000-4500K;

White:6000-7000K;

Cool White: >7000K

Red/Blue/Green/Yellow/ RGB

IP degree

IP20/33 (Bare Board) Using when indoor and keep away from rain wet
IP65 (Epoxy) fit on damp location (bathroom, kitchen and corridor)
IP67 (Casing pipe) fit on outdoor exterior building
IP68 (Silicone tube encapsulation) can be work underwater

Product features:

1. Strong flexibility: curve or bent as any angle that need;

2. Stable & High quality lighting: High quality SMD5050chips; with high brightness, large emitting angle, low thermal resistance, and low light decay, high uniformity of the emitting color;

3.Flexible & slim form, cut table at every 3LEDs ; convenient for different usage;Good Heat dissipation:

4. Using double PCB to increase the conductivity of heat and electricity and decrease the brightness difference caused by voltage drop as well;

5. Long Life span: over 50000 hours,

6. Easy Installation: With 3M self-adhesive tape for easy installation onto any flat surfaces;

7. Safe & Energy Saving: power supply at constant 12V DC; Low voltage is safer and more energy saving and eco-friendly.

8. OEM, ODM, package design and door to door shipment services



Application

1. Archway/canopy and bridge edge lighting

2. Auditorium walkway lighting

3. Backing lighting for signage letters

4. Stairway accent lighting,DIY lights for home use

5. Amusement park/theater/aircraft cabin mood lighting

6. Channel letters lighting

7. Somewhere Need to energy saving and auxiliary lighting, decorative lighting
