Newest RGBW /RGB+CCT 2 in 1 WiFI LED controller dc 9v 12v 24v


Name:Newest RGBW /RGB+CCT 2 in 1 WiFI LED controller dc 9v 12v 24v

Product Description

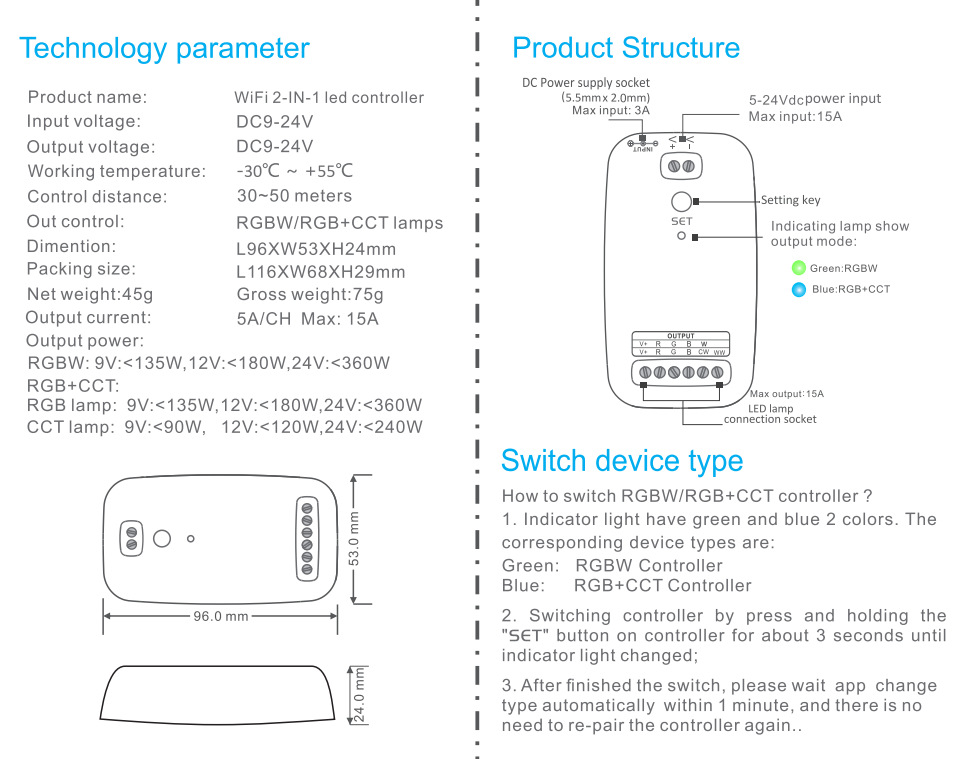

Product Description:

Product Name: intelligent WiFi LED controller
Control equipment type: Android 4.4 version above, iOS:8.3 version above.
Support for local area network control and remote control
Working temperature: -20-60 C
Power supply voltage: DC9~24V
output: 5 circuit

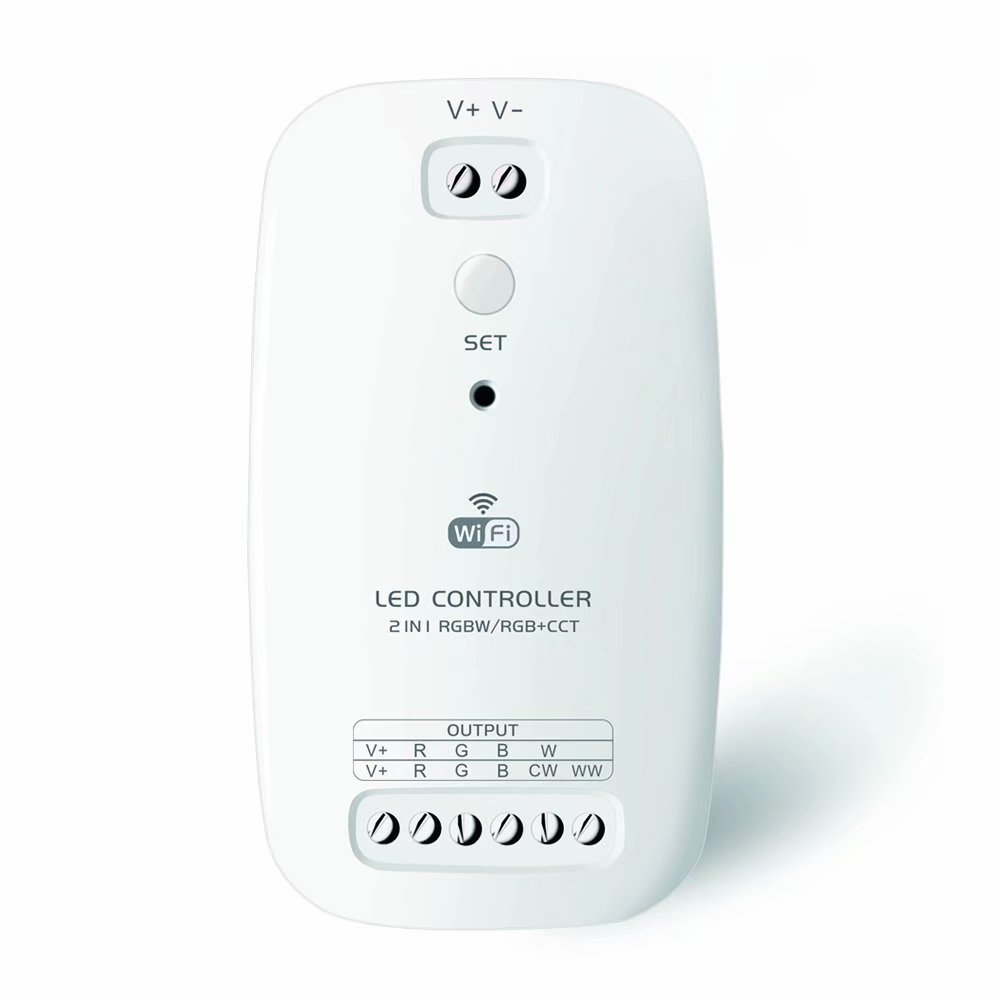

The connection mode: common anode
Controller size: L96 x W53 x H24mm
Net weight: 45g - gross weight: 75g
Static power consumption: <0.5W
The output current: <5A (per circuit)
Output power: RBGW 9V < 135W, 12V < 180W, 24V < 360W
RGB+CCT
          RGB 9V < 135W, 12V < 180W, 24V < 360W

          CCT 9V < 90W, 12V < 120W, 24V < 240W

The warranty period: 2 years.- Certification: CE Rohs
