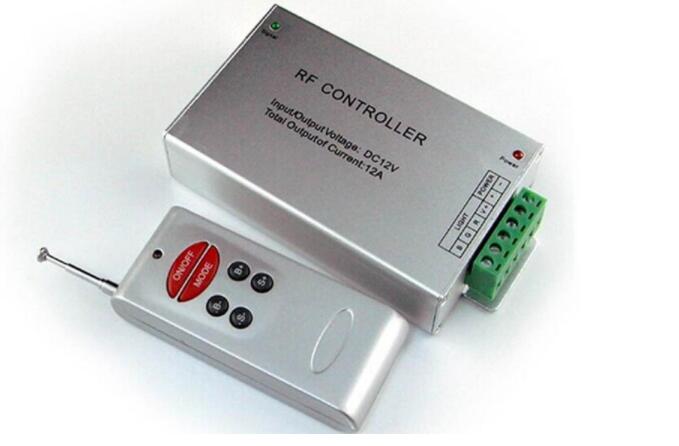

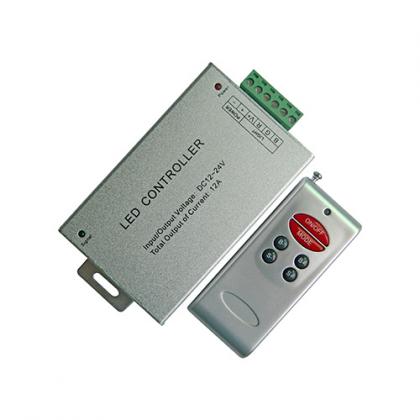

CE Aluminum Shell DC12-24V 144W/288W RF 6 Keys RGB led controller

Technicial Parameter  :

This RF 6-key RF controller adopts the advanced micro control unit, it is used for controlling a variety of constant voltage LED lights. For instance, led source , flexible led strip, wall washer, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless remote control. And according to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.



Technical Parameters:

  • Working temperature:-20-60℃
  • Supply voltage:DC12~24V
  • 0utput:3 channels
  • Connecting mode:common anode
  • Controller size:L130×W65×H25mm
  • Package size:L135×W80×H54mm
  • New weight:185g
  • Gross weight:215g
  • Static power consumption:<1W
  • Output current:<4A/ch  or <8A/ch (optional)
  • Output power: 12V/4A < 144W;12V/8A< 288W;
  •                24V/4A< 288W;24V/8A< 576W

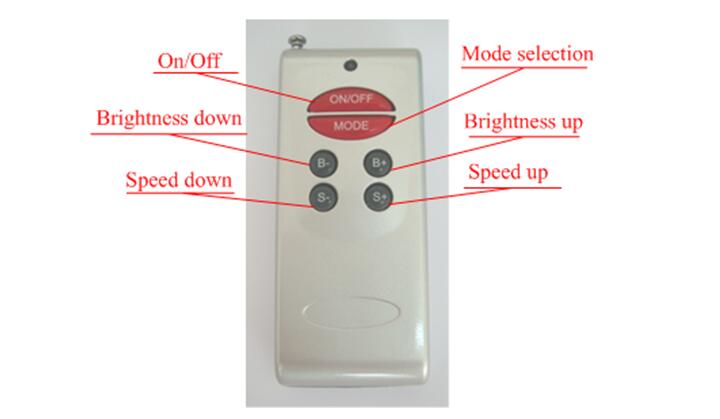

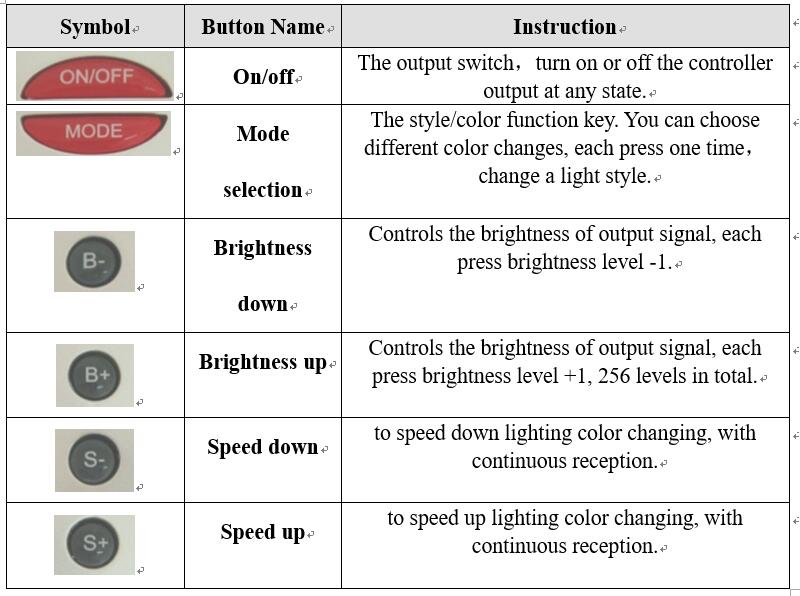

● Press each time, the green light flash one time, indicating that has entered the next state.

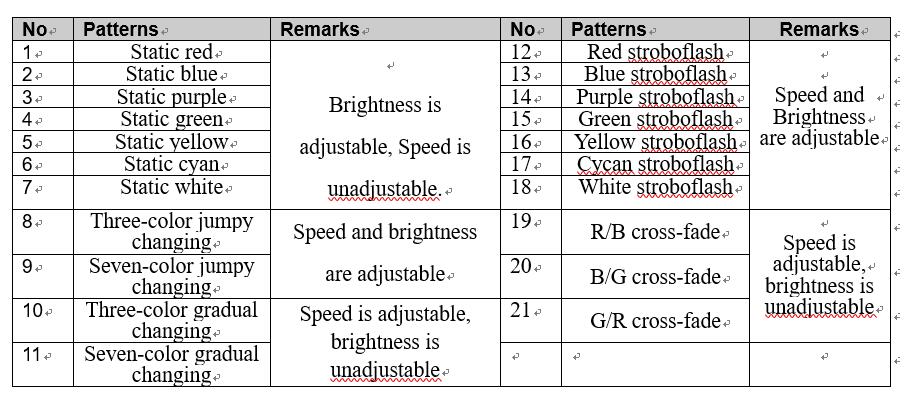

● Standard color changes as follows:
