WS2812B WS2812 Led Strip,30/60/74/96/144Pixels/Leds/m Individually Addressable Smart ws2812 IC RGB Led Strip DC5V
|
|
Product Decsription:
1) WS2812B Led Strip is Powered By "5V Power Supply" (Not Included) And Is Controlled By A Single Data Line From A Suitable Controller (Not Included).
2) 3-Pin JST Connector Included: Red:VCC, Blue:GND, Green:DATA.
3) The Strip Has 3M Adhesive Tape On The Back(Except Ip67). Installation Surface Must Be Smooth, Clean And Dry.
4) Led Strip Can Be Cut Between Every Led To Create Custom Lengths.
5)Do Not Bend Strip Sharply.
6)Longer Runs Should Be Powered From Both Ends To Reduce Voltage Drop.
7)3-Pin JST Connector Wire is 20AWG.
Products Application:
WS2812B dream color strips can be used for TV hotel, KTV, bar, game room and other leisure, entertainment decoration to heighten the atmosphere, car chassis, car decoration, shop decoration, home decoration and other decoration.
product details:
Input voltage ..........................DC5V
Power ..........................30leds/m----9watt/meter
..........................60leds/m----18watt/meter
...........................74leds/m----22.2watt/meter
............................96leds/m----28.8watt/meter
............................144leds/m----43.2watt/meter
LED resource ............................WS2812B led(5050 SMD RGB LED with built-in improved version of ws2811 ic)
LED ............................each LED is separately controlled
IC Type ............................improved version ws2812 IC(built inside the 5050 smd rgb led)
Of IC .............................(1 IC drives 1 led chip)
Pixels ..............................30/60/74/96/144/meter

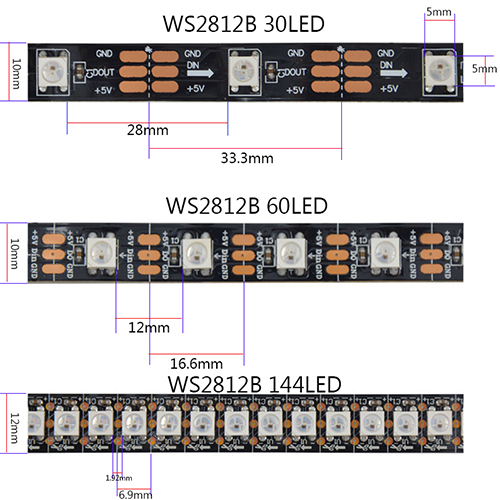

Pitch ...............................16.6mm(1000/64)
Grey scale ...............................256
Bits/color ................................8-bits/color
FPC Width ...............................30leds/m----10mm
...............................60leds/m----10mm
...............................74led/m---12mm
..............................96led/m---12mm
..............................144leds/m----12mm
FPC color ...............................black/white
Protection rate ...............................IP30/ IP65 /IP67
Colors ...............................Full color RGB, dream color changing
Cuttable ................................every LED is cuttable
Package ...............................in anti-static bag,IP30 IP65 with 3M adhensive tape on the back(IP67 without 3M adhensive)
