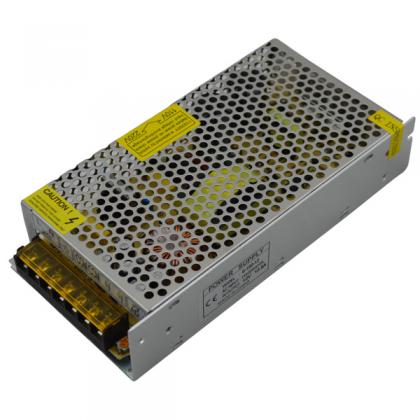

150w DC12v 12.5A Switching Power Supply Driver for led strips
|
|
Features:
1.LED switching power supply applies pulse width modulation (PWM)
technology,which is designed to ensure stability and high efficiency.
2. Products interference through the EMC testing, ripple ≤ 50MV.
3. Over voltage protection, short circuit protection, overload protection.
4. With anti-interference tech to reduce light chip from decline and constant
current output would extend life.
Description:
1.
International AC input range
2.
High efficiency,low working
temperature
3.
Short
circuit,overload,over-current protection
4.
100% fully load burn-in test
5.
Built-in EMI filter, low ripple
noise
6.
Low cost, high reliability
7.
CE and RoHS approved
| Model | A150W20-12V |
| AC input voltage range | 110-264VAC |
| Input current | 0.5A/115V 0.25A/230V |
| AC impulse current | Cold-start current 13A/115V 26A/230V |
| DC output voltage | 12V |
| DC output power | 150W |
| Rated output current | 12.5A |
| Output voltage error | ±1% |
| Efficiency | 85% |
| Wave and noise | 100mVp-p |
| Inlet stability | ±0.5% |
| Load stability | ±0.5% |
| Leakage current | <0.5mA/240VAC |
| Overload protection | 105% - 150% rated power, automaticly recovery |
| Vibration | 10500Hz,2G 10min./1cycle,Period for 60min,Each axes |
| Cooling method | Natural cooling air convection |
| Working temperature and humidity | - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) |
| Store temperature and humidity | - 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost) |
| Safety standards | CE(EMC+LVD),Rohs |
| Dimension | 199x98x42mm |
| Weight | 0.55kgs |
