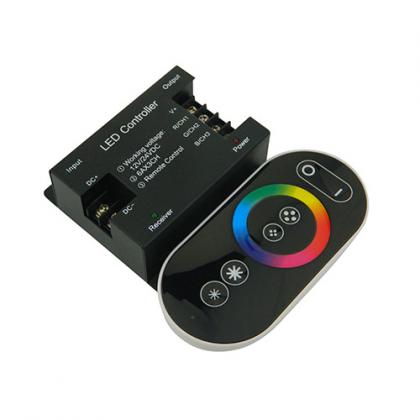

hot sale RF wireless touch remote control RGB LED controller

Specification:


Controller:

Working temperature:-30℃~+60℃

Supply Voltage:DC5V/DC 12V-24V,

Output:3 channels N-MOS Drain open output

Connection mode:common anode

Static power consumption:<0.5W

Output current: 6A*3Ch=18A 6A(Each channel)

controller dimension::L83 Χ W79 Χ H33 mm

Package size:L205ΧW135ΧH45mm

Net Weight:168g

Gross Weight:392g



Remote Control:

Working temperature:-30℃~+60℃

Power supply mode:3pcs NO.7 Battery

Supply voltage:3V

Static power consumption:<0.09mW

Static current:10uA

Operating current:15mA

Remote-controlled distance:>20M

Stand-by time:6 months



The  RF touch remote control RGB controller adopted the advanced touch technology, Mainly used to control all kinds of constant voltage led products, such as LED source, flexible strip, wall washer, glass curtain wall light and so on. User can choose different changing mode, adjust the speed and brightness,turn on/off by the remote control according to their preference. This controller is with power off memory function, next time to used it, will start with the model it save. Its built-in 7 kinds of static color, jump, fade, strobe, flow, automatic cycle and others effect. Agile wiring, easy connection and simple to used is the representative advantages of this controller.

Besides, This controller is with short circuit protection function,when meet short circuit, its green indicating light will be twinkling in a fixed frequency to indicate the user. what's more,Its with automatically restore function after short circuit protection,this personalized design can make the user experience another different sense.



main characteristic:

① Novel,fashionable,unique,noble appearance ,High sensitivity with good feeling.

② The touching ring is sensitive, the RGB color wheel is Very intuitive appear in the touch ring,user can choose the color they prefer easily.Beside, this remote can be touch single point or to touch continually to  realize choosing the color .

③ Low power consumption, long lifespan, can be touch infinite times , overcome the shortcomings of traditional key short lifespan.

④ With auto Resting function,it will be turn into Resting state after 20 seconds with touching the remote control,this function can Realize saving electricity and prolong the battery lifespan.

⑤ With auto Resting function,it will be turn into Resting state after 20 seconds with touching the remote control,this function can Realize saving electricity and prolong the battery lifespan.

⑥ Stable remote,long remote distance.



Dimension:
