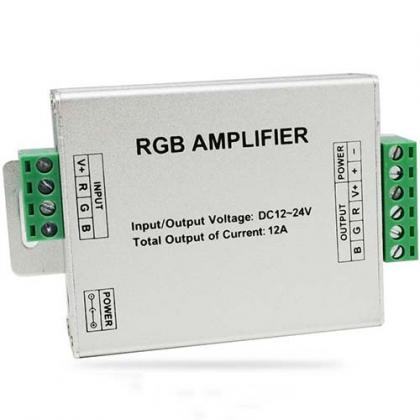

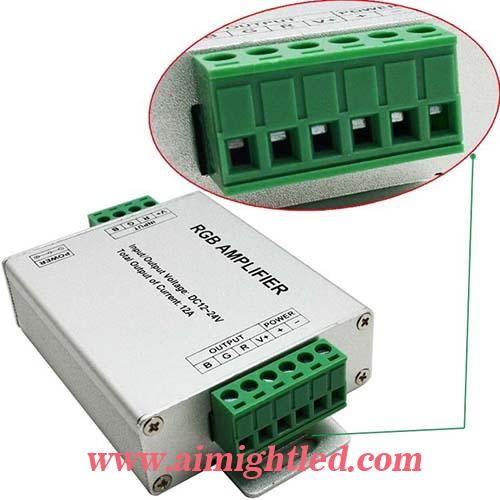

DC12V 12A Aluminum Shell RGB Amplifier

Technical Parameters

● Working temperature: -20-60℃

● Input voltage: DC12~24V

● Output: 3 circuit

● Connection mode: Common anode

● product size: L105×W65×H23mm

● package size: L115×W70×H35mm

● Net weight: 110g

● Gross weight: 125g

● Static power consumption:<1W

● Output current: <4A/CH (8A/CH For optional)

● Output power: 12V/4A < 144W;12V/8A< 288W;24V/4A< 288W;24V/8A< 576W.



Description:

The Aluminum shell RGB amplifier is suitable for all kinds of constant voltage led RGB controller. It can enlarge the led controller signal through the RGB to receive the PWM (pulse width modulation), and output the signal to the load ,then it can make the same  effect with the controller.when add each additional amplifier, can connect and controlled twice more LED lights. Theoretically, one controller can connector with thousands of this RGB amplifier, and can make the same effect.

Direction for use:

Connect the input and output wire in sequence according to the specification one the label of the amplifier, make sure that no short circuit phenomenon, then connect the amplifier to the DC12V/24V power supply, and used with the led light, the wiring diagram are as follows:

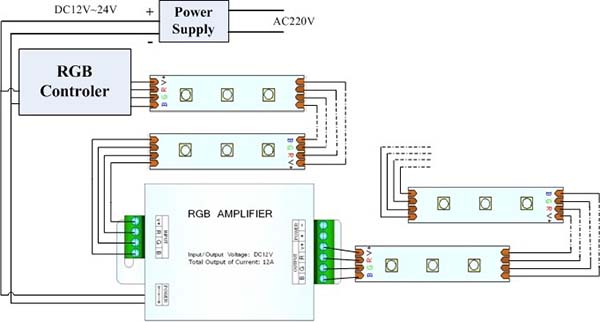

application circuit 1——serial connection, used one power supply:

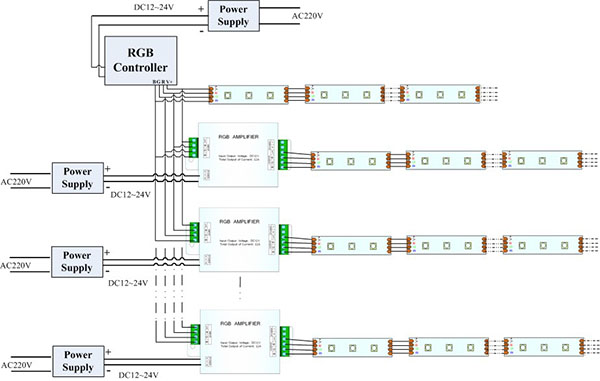

application circuit 2——serial connection, used two or more power supply:

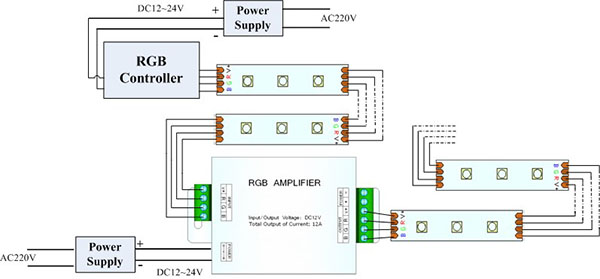

application circuit 3——parallel connection, used one power supply:

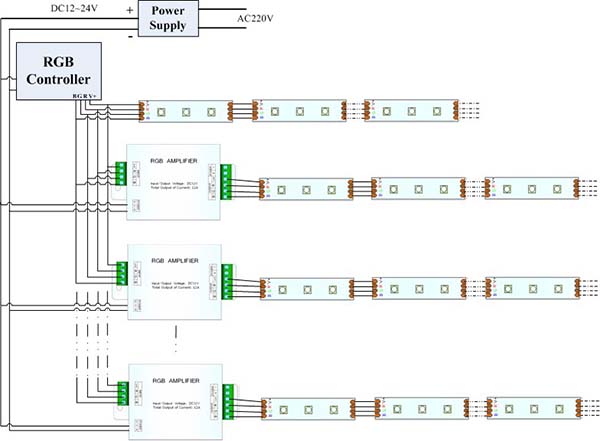

application circuit 4——parallel connection, used two or more power supply:
