DC12V/24V Voltage wireless RF 11 Keys led dimmer controller
|
|
Specification：
Technical Parameters
● Working
temperature：-20~55℃
● Supply
voltage：DC12V~24V
● Output：2 Channel(2ch
signal are the same)
● Connection
mode：Common anode

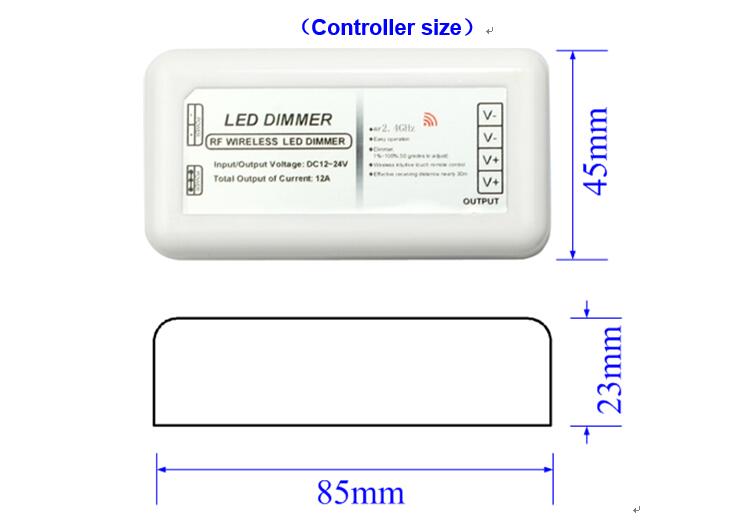

● Controller size：L85×W45×H23mm
● Net
weight：58g
● Static power consumption：<1W
● Output
current：<4A/CH
● Output
power： 12V:< 96W；24V:<192W
The 11 keys Single color led dimmer adopt the RF wireless remote control, can adjust brightness according to your own need. User could adjust the brightness by pressing the keys with 25%,50%,75%,100%. what’s more, its with the 10 Seconds/30 second/1 minute delay off function, which is a really user-friendly design for special application.

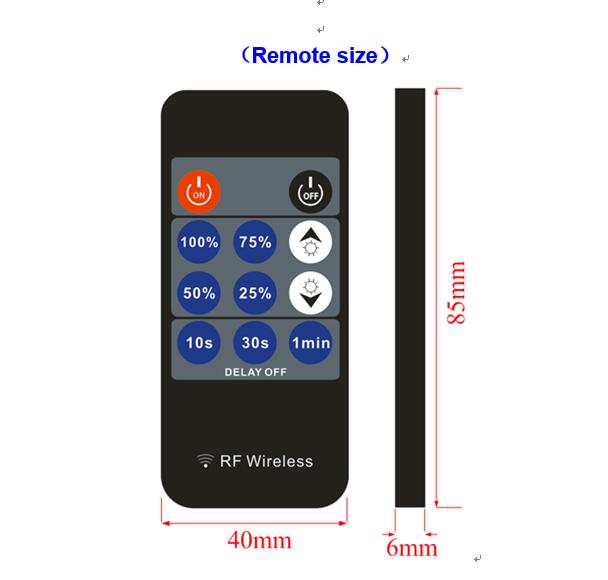

Dimension：
