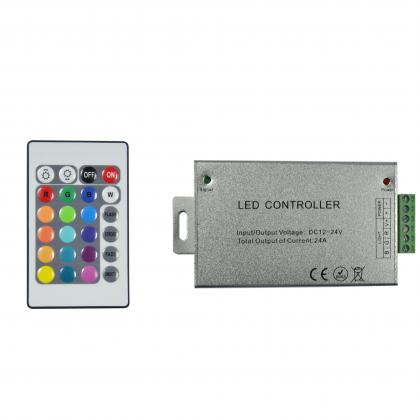

Aluminum shell IR 24 keys RGB controller

Technical Parameters

Working temperature

-20-60℃

Supply voltage

12V~24V optional

0utput

3 channels

Connecting mode

common anode

External dimension

L130*W64*H24 mm

Packing size

L137*W80*H54mm

Net weight

185g

Gross weight

215g

Static power consumption

<1W

Output current

<4A or 8A each channel Optional

Output power

12V/4A < 144W;12V/8A< 288W;24V/4A< 288W;24V/8A< 576W



Product intrduction:

24-key aluminum infrared controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control. In addition, customers can adjust their light color as they like.

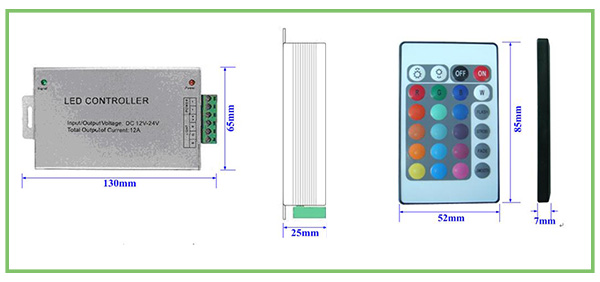

Dimension:

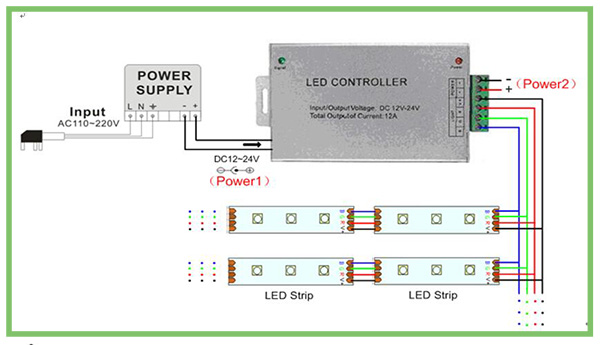

Application:
