Description:

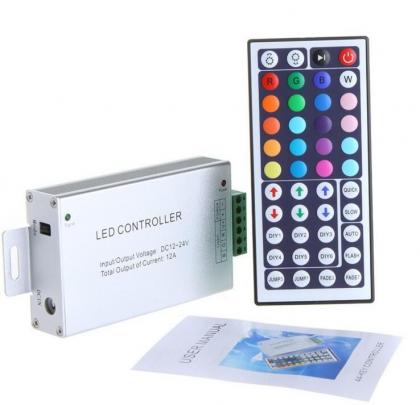

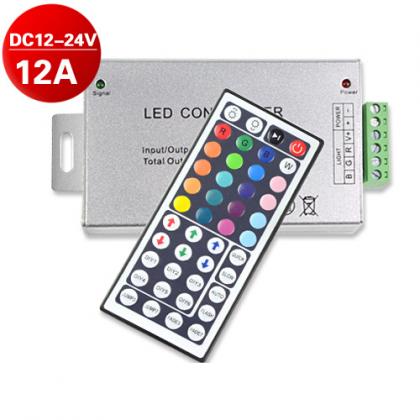

 44-key aluminum wireless RF controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless RF remote control. In addition, customers can adjust their light color as they like.

Technical Parameters

● Working temperature：-20-60℃

● Supply voltage：DC12~24V

● 0utput：3 channels

● Connecting mode：common anode

● Controller size：L130×W65×H25mm

● Package size：L135×W80×H54mm

● New weight：180g

● Gross weight：210g

● Static power consumption：<1W

● Output current：<4A/ch  or <8A/ch (optional)

● Output power： 12V/4A < 144W；12V/8A< 288W；24V/4A< 288W；24V/8A< 576W

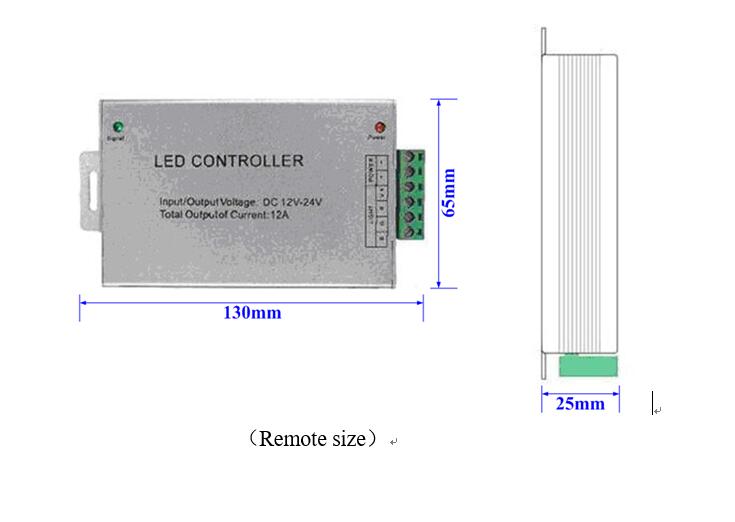

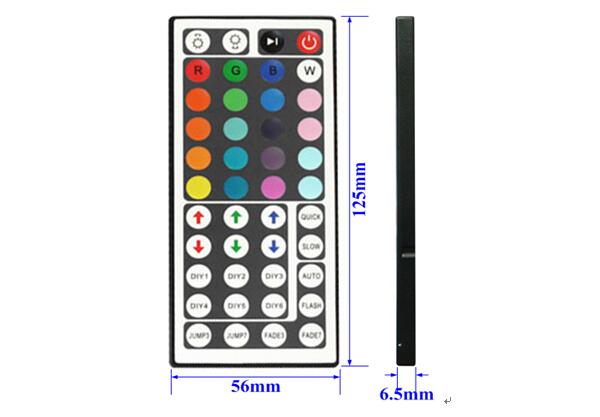

Dimension:

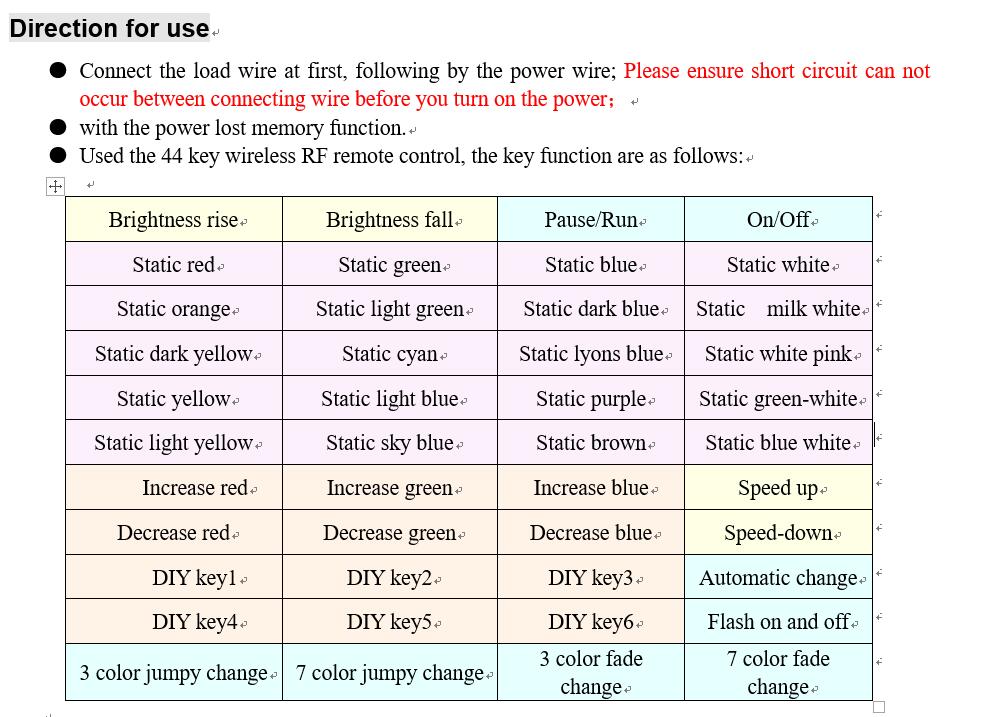

Supplement：About DIY key, when it’s pressed first time, will enter the DIY color mode, you can adjust the color per the 6 keys above to increase or decrease the R/G/B color by yourself freely（if other key is pressed at this time，will jump out from DIY color mode）. And you can save the color which you have adjusted by pressing the DIY key once again. When next time this key is pressed, it will show the color you saved last time.

There are 6 DIY keys, so you can save 6 colors you like. They are all Independent, have no effect on each other. For example: if you press DIY key1 first, and then press DIY key2, DIY key1 will be invalid, until DIY key2 is pressed once again, current color will be saved.
