Product Description:

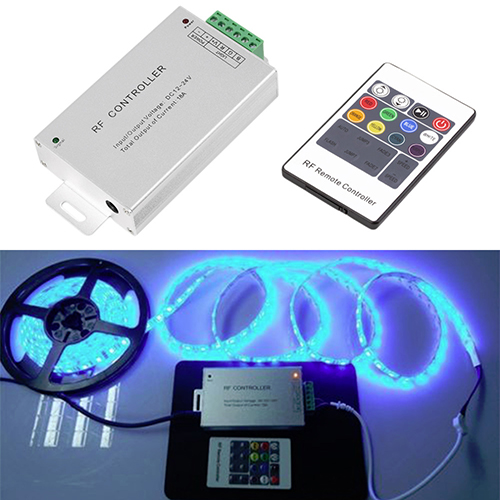

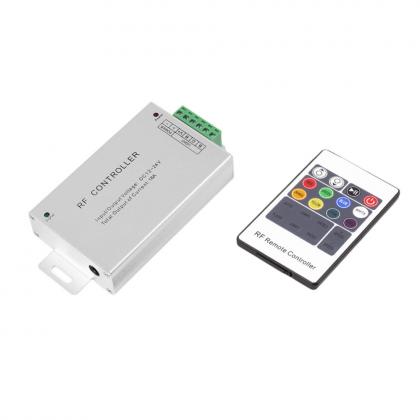

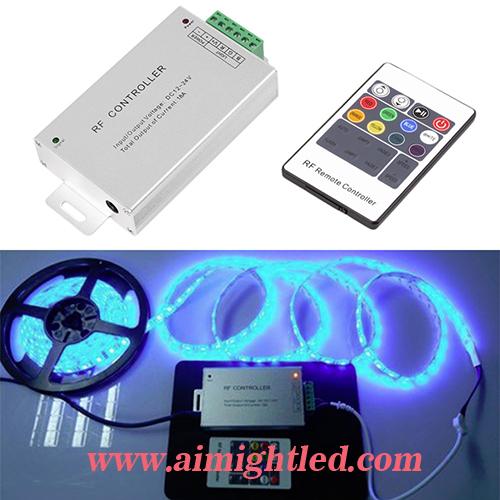

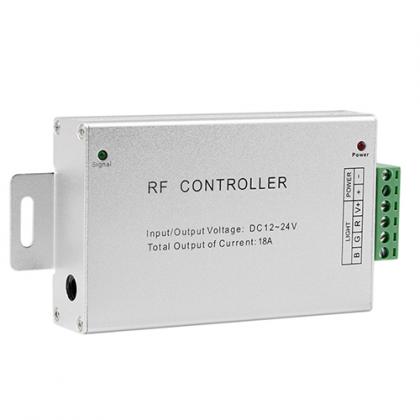

Aluminum RF 20 Keys RGB controller adopts the advanced computer control chip. Its mainly used to control all kinds of constant voltage led lights, such as: LED source, LED strips, led wall washer, wall Glass curtain lights, etc. It’s integrated with easy connection, simple operation and power off memory function.User can choose the 7 color jump, fade, flash mode, and the brightness is adjustable according to the user actual requirement.

Technical Parameters:

 ● Working temperature：-20-60℃

 ● Input voltage：DC12~24V

 ● Output：3 circuit

 ● Connection mode：Common anode

 ● Controller size：L130×W65×H25mm

 ● package size：L135×W80×H54mm

 ● Net weight：180g

 ● Gross weight：210g

 ● Static power consumption：<1W

 ● Output current：<4A/ch  or <8A/ch (optional)

 ● Output power： 12V/4A < 144W；12V/8A< 288W；24V/4A< 288W；24V/8A< 576W
