New Design COB LED Flexible Linear lighting

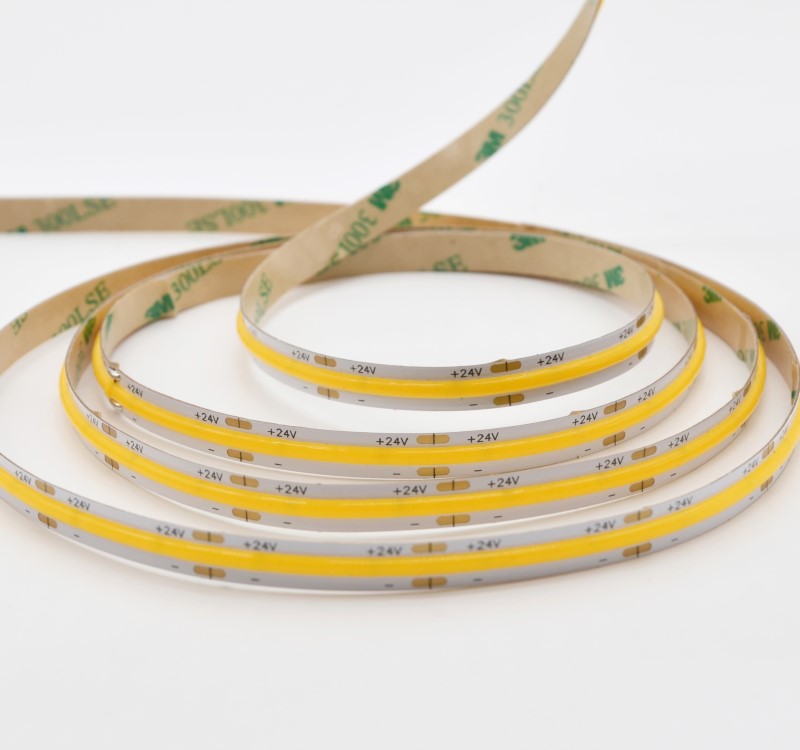

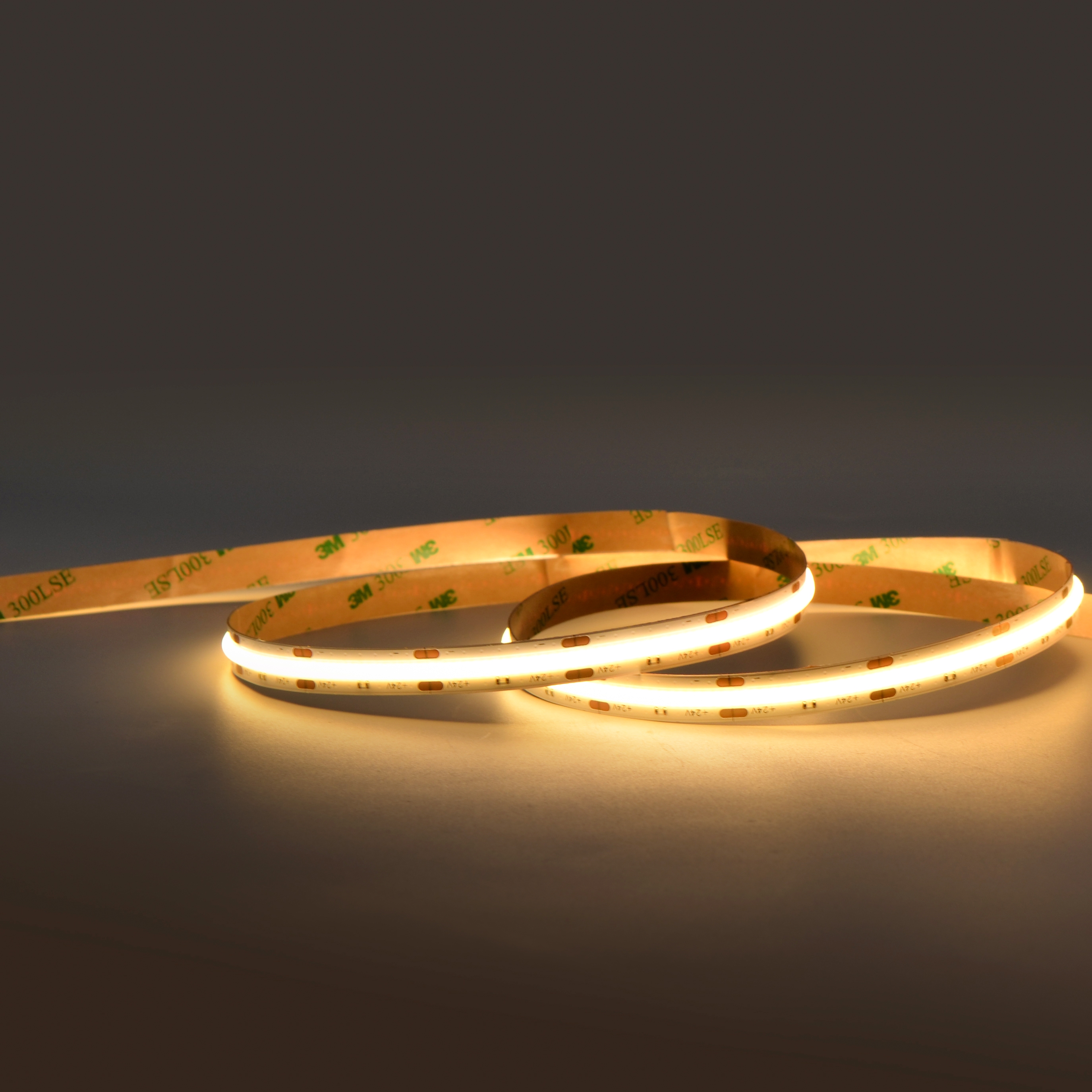

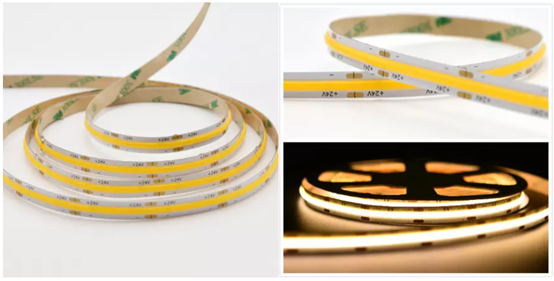

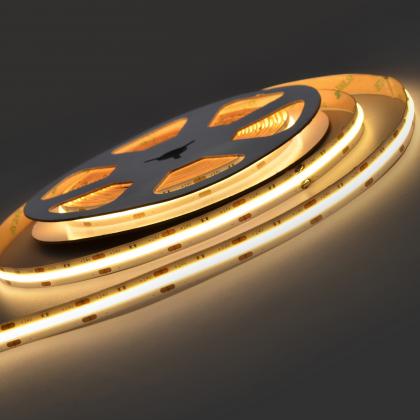

Flexible COB Led strip

Product Description


 1. Good solution for linear light. It perfect achieve the Dot-Free lighting effect even if without any profile or PC cover.

2. Continuous and uniform linear illumination, with soft and elegant light, no glare.

3. Adopt Flip-Chip technology, no dead light risk.

4. Single point's current is small, which provides good heat dispersion, long life span and low luminous decay.

5. More flexible and bendable than the traditional led strip, it has a bending radius of only 5mm, so it can be any shape you want.

6. Suitable for furniture, KBB market or any corner application.

7. It's your new best choice for Lighting Market.


              Item Type

        COB LED Strip

              Led Model

        AMT-COBST480

              LED Qty

        480Leds/M

              Voltage

        DC12V/24V

              Power

        5W/10W/15W

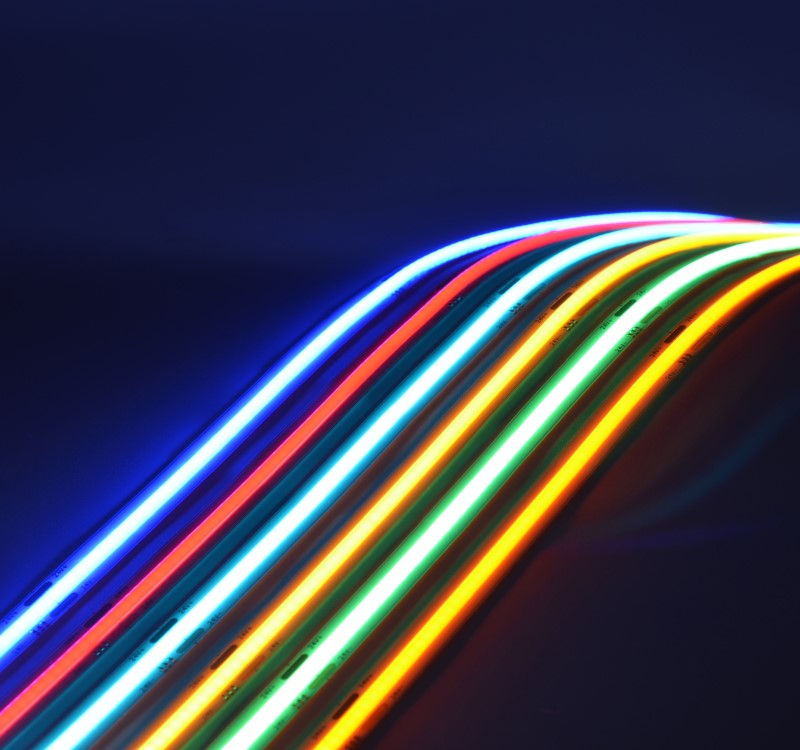

              Emitted colors

        Warm White/Natural White/Cool White

              Cutting Size

        25mm/50mm

              Ra

        90

              CCT(K)

        2700K/3000K/4000K/6500K

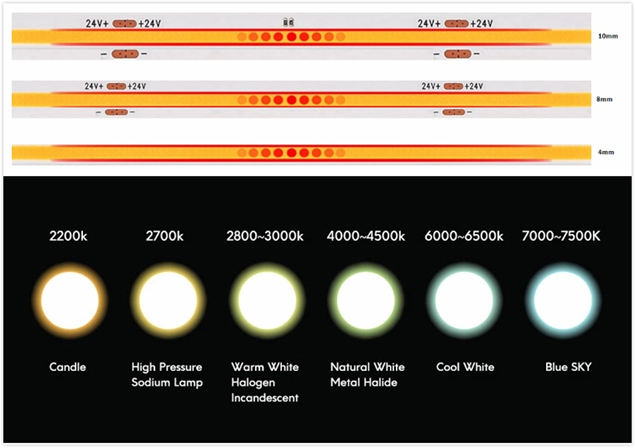

              PCB Width

                     4mm/8mm/10mm

              IP Rating

        IP20/IP65/IP67/IP68

              Bean Angel

                 180°

              Certification

        CE/RoHS/UL





Product Feature

Led Lighting New Trend--COB strip

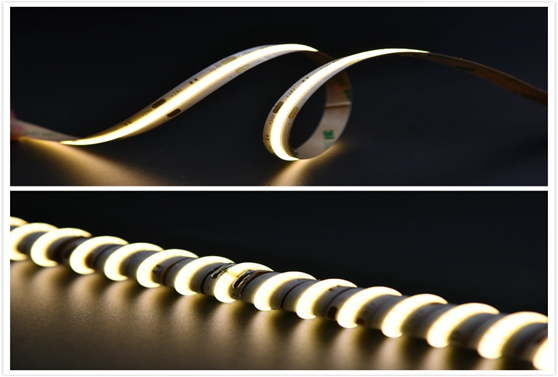

 Easy to bend and shape



The bending radius of only 5mm, flexible bending and limitless winding, provides the amazing illumination effect that beyond your imagination.

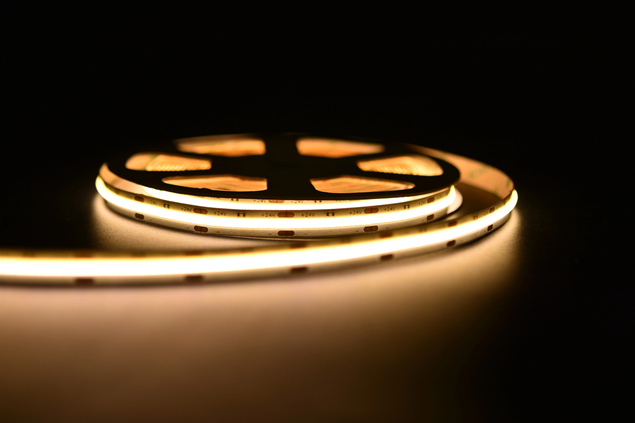

Spot-free Lighting effect:

No need to rely on other accessories to achieve a spot - free linear lighting effect.


Both Indoors & Outdoors

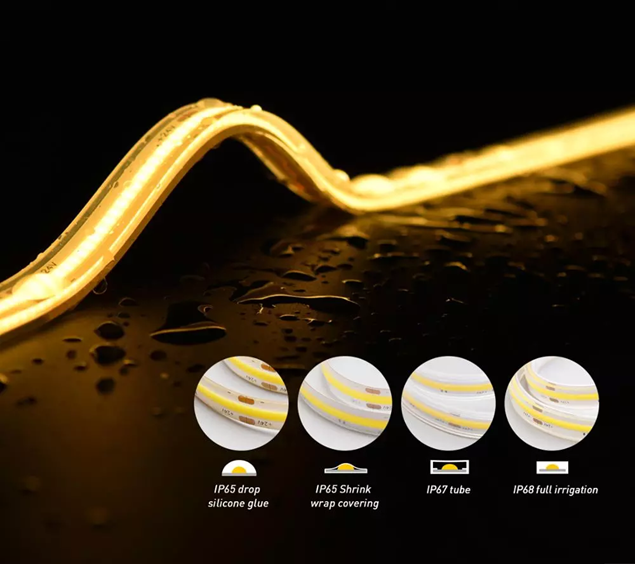

Various waterproof methods for choice: IP65-Silicone surface coating, IP65-Heat shrink, IP67-Silicone tube, IP68-Full injecting.

It can meet all kinds of indoor and outdoor lighting needs.



The following are IP rating:

IP20:  Non-waterproof, available indoor.

Ip65:  silicone glue or epoxy resin, can prevent the splashing water invade, available indoor.

IP67:  Silicone tube, hollow, can prevent the big wave water invade; available indoor and outdoor.

IP68:  Silicone tube +silicone gel or silicone extrusion molding, completely prevent dust and water invade; available indoor,outdoor and water.
