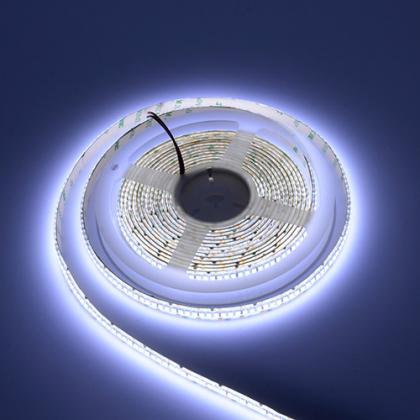

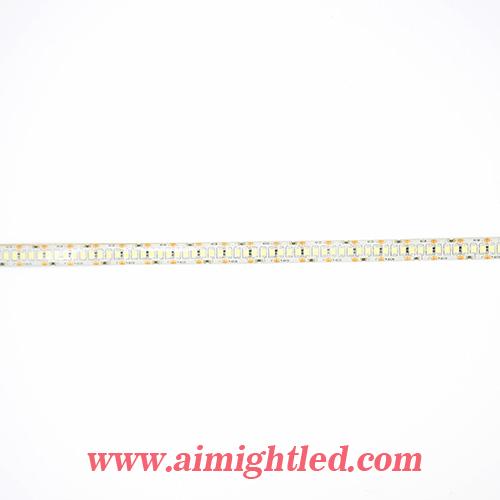

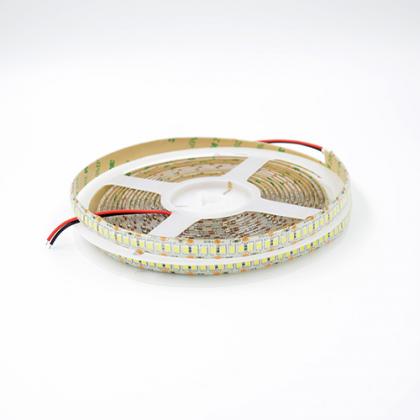

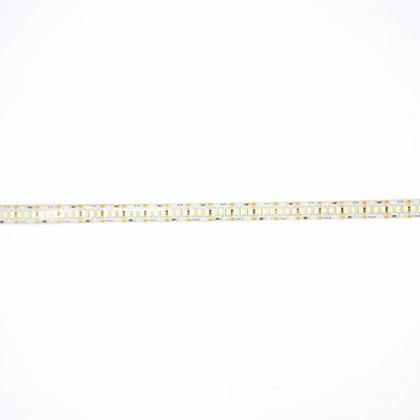

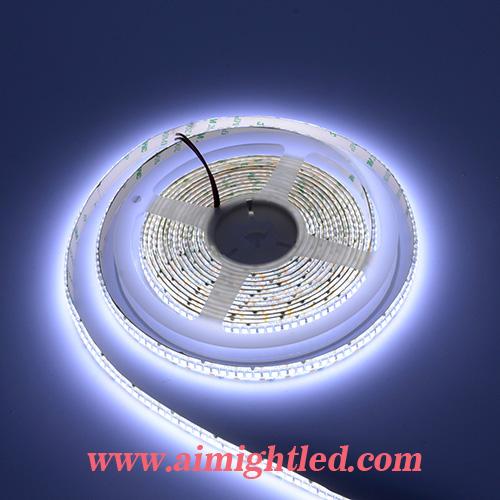

2835 240leds/m IP20 cool white 20w/m

Product parameters:

Item No

AB2835CW240-12V

Led type

Smd2835

Led source

Sanan/ epistar

Material

Aluminum

Input voltage

12v/24v

Power

20w/m

Led Qty/ (M):

240

Lumen

10-12lm/led

Dimension

8*5000mm

Emitting Color:

Warm white

Viewing Angle

120

Back tape

3M adhesive

IP degree

IP20

Life time(hour)

50000 hours

Certificates

CE & Rohs

Warranty

2 years warranty

Warranty

2 years

Working temp

-20 - 60

Back tape

3M adhesive

Packing

100rolls/carton



Color temperature

Warm white: 2800-3200K;

Nature White:4000-4500K;

White:6000-7000K;

Cool White: >7000K

Red/Blue/Green/Yellow/ RGB

IP degree

IP20/33 (Bare Board) Using when indoor and keep away from rain wet
IP65 (Epoxy) fit on damp location (bathroom, kitchen and corridor)
IP67 (Casing pipe) fit on outdoor exterior building
IP68 (Silicone tube encapsulation) can be work underwater



Product features:

1. Strong flexibility: curve or bent as any angle that need;

2. Stable & High quality lighting: High quality SMD 2835 chips; with high brightness, large emitting angle, low thermal resistance, and low light decay, high uniformity of the emitting color;

3.Flexible & slim form, cut table at every 3LEDs ; convenient for different usage;Good Heat dissipation:

4. Using double PCB to increase the conductivity of heat and electricity and decrease the brightness difference caused by voltage drop as well;

5. Long Life span: over 50000 hours,

6. Easy Installation: With 3M self-adhesive tape for easy installation onto any flat surfaces;

7. Safe & Energy Saving: power supply at constant 12V DC; Low voltage is safer and more energy saving and eco-friendly.

8. OEM, ODM, package design and door to door shipment services



Application

1. Archway/canopy and bridge edge lighting

2. Auditorium walkway lighting

3. Backing lighting for signage letters

4. Stairway accent lighting,DIY lights for home use

5. Amusement park/theater/aircraft cabin mood lighting

6. Channel letters lighting

7. Somewhere Need to energy saving and auxiliary lighting, decorative lighting
