Technical Parameters

● Working temperature: -20~55℃

● Supply voltage: DC12V~24V

● Output: 3 Channel(3ch signal are the same)

● Connection mode: Common anode

● Controller size: L83×W79×H32mm

● Net weight: 180g

● Static power consumption: <1W

● Output current: <6A/CH

● Output power: 12V: <216W; 24V: <432W

Description：

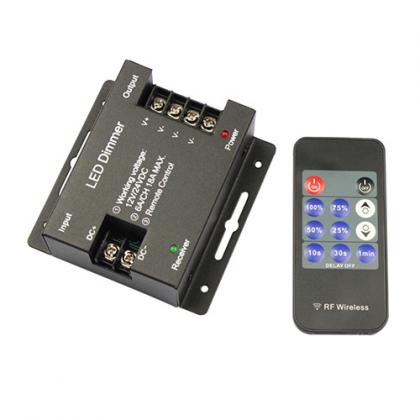

The 11 keys Single color led dimmer adopt the RF wireless remote control, can adjust brightness infinitely to change the lights brightness. User could adjust the light to the appropriate lighting brightness in accordance with the 25%,50%,75%,100% brightness hot keys easily. what’s more, its with the 10 Seconds/30 second/1 minute delay off function, this can realize more humanized to used.

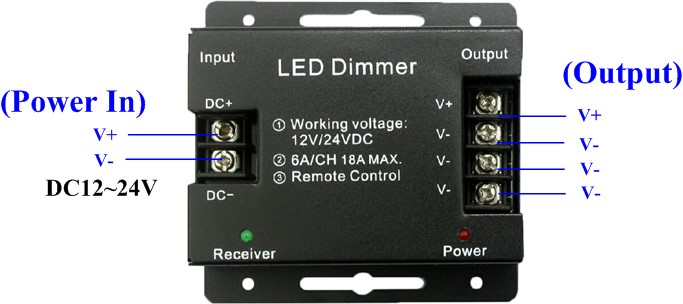

Connection description:

Direction for use

●Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

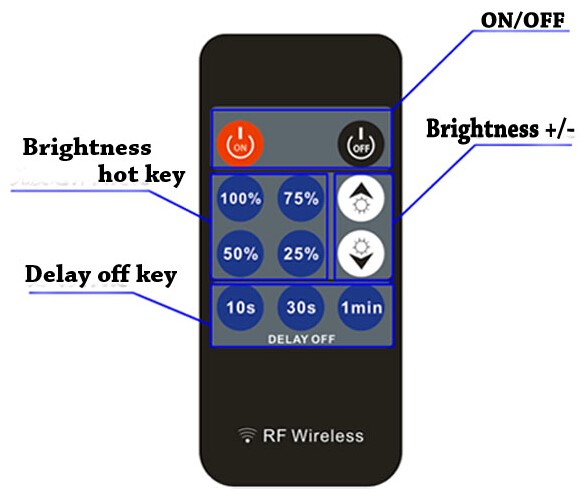

●Adopt wireless 433.9mhz RF 11 keys remote control, its function as follows:
