Product introduction:

The RF Mini RGB controller adopted the advanced computer control chip. Controlled by 433Mhz wireless remote. Its mainly used to controlled all kinds of constant voltage led lights, such as: LED source, LED strips, led wall washer, wall Glass curtain lights, etc. It integrated with low cost, easy connection, simple manipulation and others advantages. User can choose the mode of fade, strobe,Blasting flash, flicker, and other Static color model. What’s more, this controller have the characteristics of small volume, easy to carry, etc, its popular amount the many markets.

Technical Parameters:

● Working temperature：-20-60℃

● Input voltage：DC5-24V

● Output：3 circuit

● Connection mode：Common anode

● controller size：L40.0×W12.0×H5mm

● controller size：L85.9×W39.6×H6.9mm

● Net weight：35g

● Gross weight：40g

● Static power consumption：<0.5W

● Output current：<2A*3CH(each circuit)

● Output power： 5V:<30W, 12V:<72W

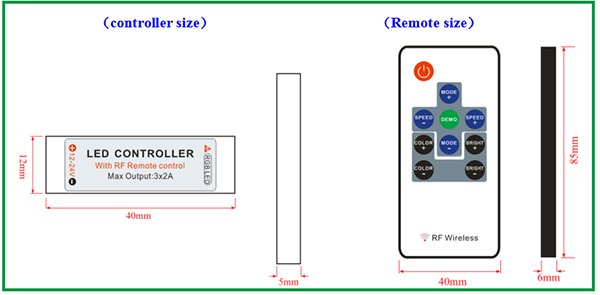

Dimension:

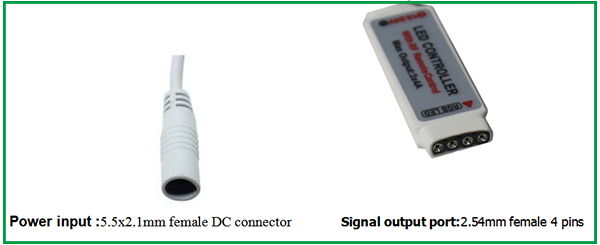

Connection description:

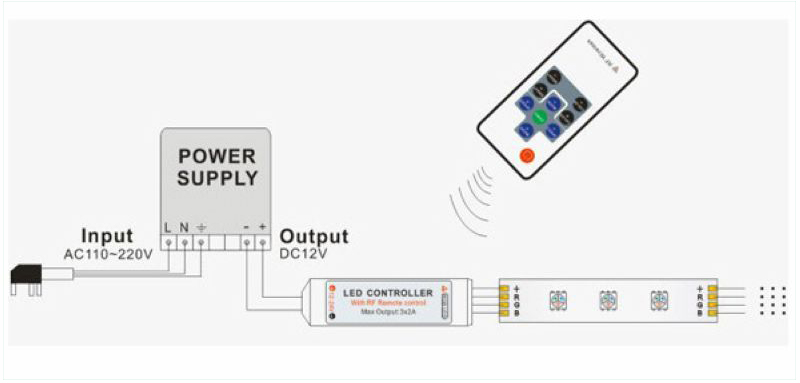

Application:
